How I Created My First Malicious Driver

Disclaimer: This article is for educational purposes only. Writing or deploying malicious drivers is illegal and unethical unless done in a controlled environment for research and learning. Always follow legal and ethical guidelines.

Setting Up the Environment

To create my first malicious driver, I utilized the resources provided by Microsoft’s official documentation on downloading and setting up the Windows Driver Kit (WDK). Here's the step-by-step process I followed:

i followed along with this video to guide me on how to create this project

1. Download and Install Visual Studio 2022
   • I installed Visual Studio 2022 using the official guide.
   • During the installation process, I ensured to select the “Desktop development with C++” workload and added the necessary individual components for driver development, including:
     • MSVC v143 - VS 2022 C++ ARM64/ARM64EC Spectre-mitigated libs (Latest)
     • C++ ATL for latest v143 build tools with Spectre Mitigations (ARM64/ARM64EC)
     • Windows Driver Kit (added later via modifying the Visual Studio Installer).
2. Install the Windows SDK
   • Using the provided link, I downloaded and installed the Windows SDK version 10.0.26100.2454 to ensure compatibility with the driver kit. This is essential as mismatched versions between the WDK and SDK can lead to build errors.
3. Install the Windows Driver Kit (WDK)
   • After installing the SDK, I downloaded and installed the Windows WDK of the same version (10.0.26100.2454). The WDK integrates seamlessly with Visual Studio for driver development.

Writing the Driver Code

Once my environment was set up, I wrote a simple kernel-mode driver. The driver was designed to print a debug statement that said, “My first Malicious Driver.” Below is a simplified outline of the code I used:

#define _AMD64_
#include <wdm.h>

NTSTATUS DriverEntry(void* a, void* b) {
    DbgPrint("My first Malicious Driver");
    return STATUS_SUCCESS;
}

Key points in the code:

• DriverEntry: This is the entry point of the driver and is executed when the driver is loaded.
• DbgPrint: This function outputs debug messages to the kernel debugger.

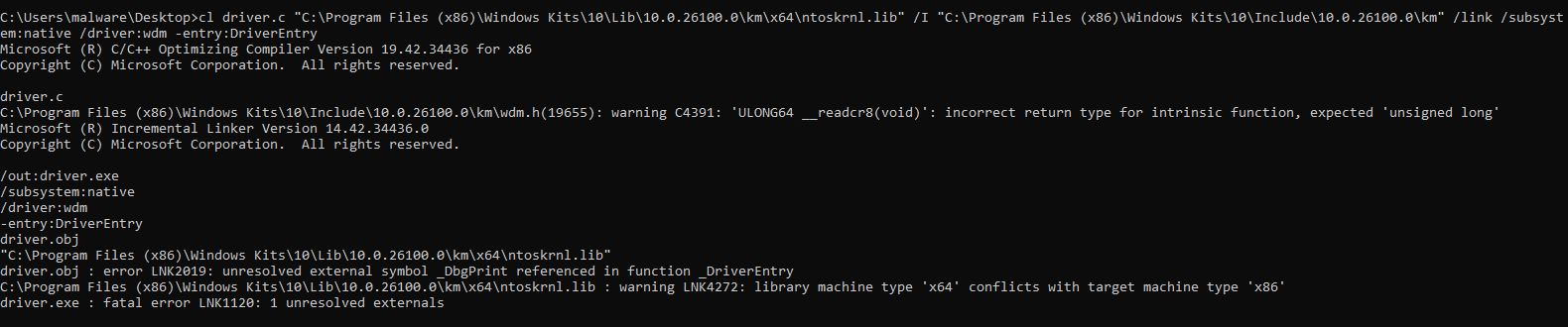

cl driver.c "C:\Program Files (x86)\Windows Kits\10\Lib\10.0.22621.0\km\x64\NtosKrnl.lib" /I "C:\Program Files (x86)\Windows Kits\10\Include\10.0.22621.0\km" /link /subsystem:native /driver:wdm -entry:DriverEntry

Building and Compiling the Driver

1. Set up the project in Visual Studio:
   • Created a new project for a “Windows Kernel Mode Driver (KMDF).”
   • Included the necessary libraries and headers provided by the WDK.
2. Build Configuration:
   • Set the build configuration to “Release” for x64 architecture.
   • Built the driver, which produced a .sys file as the output.

ren driver.exe driver.sys

Testing the Driver

1. Set up a Virtual Machine:
   • To avoid affecting my host system, I tested the driver in a controlled virtual machine environment.
2. Enable Unsigned Driver Mode:
   • To allow unsigned drivers to run, I restarted the VM and enabled the option by following these steps:
     • Hold Shift and click "Restart" to access advanced startup options.
     • Navigate to "Startup Settings" and press 7 to disable driver signature enforcement.
3. View Debug Output:
   • Downloaded and used DebugView to capture and view the output of the driver.
   • Confirmed that the debug message "My first Malicious Driver" was successfully displayed in DebugView.

Used the sc command to create and start the driver service:

sc create infinit3iDriver binPath= C:\Users\Nir\poc\driver\driver.sys type= kernel
sc start infinit3iDriver

Conclusion

Creating this driver was a fascinating learning experience. It provided insights into how kernel-mode drivers interact with the operating system and how they can be abused if misused. Again, I emphasize the importance of using such knowledge responsibly and legally.
